    chart

    最近更新时间: 2021-02-05 16:48:15

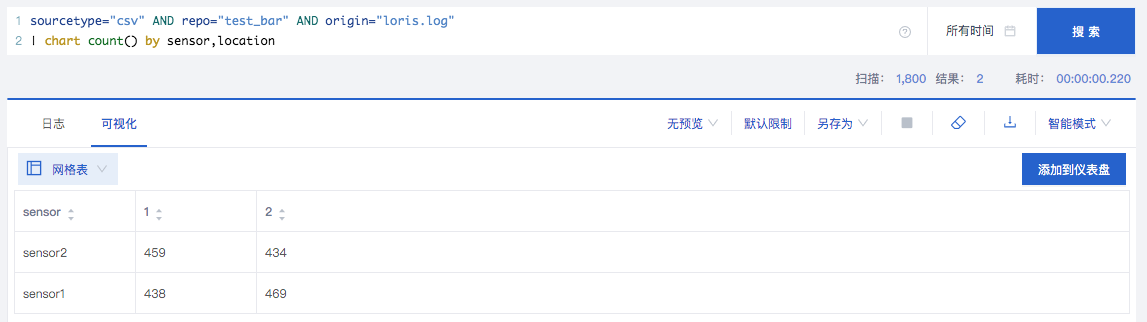

    chart 命令对数据进行聚合统计,比如平均数、计数与总和。与stats命令不同的是,chart命令支持多个分组字段。第一个分组字段<row-split-field>对数据进行行分组,将分组字段的每一个值显示在单独的行上。第二个及之后的分组字段<column-split-field>对数据进行列分组,分组字段的每个值成为列标签,效果如下。

    语法:

    chart [<chart-options>] <stats-func>... [ BY <row-split>, <column-split> ] | [ OVER <row-split> ] [BY <column-split>]


    参数说明:

    • chart-options:
      • limit=<N>: 可选, 限制返回列的数量,超出限制的列显示为other列标签。limit默认值为10,limit值为0的时候表示无限制。当有 <where-clause> 时,limit 参数无效。
    • stats-func: 必填,统计函数,详见链接
    • row-split: <field> [<bin-options>]
      • <field>: 行分组字段。
      • <bin-options>: 可选,分桶选项。
        • bins=<N>:可选,分桶数量,默认100。
        • span=<N>:可选,分桶的时间间隔,可为时间单位字符串或者正整数。例如 1s,1m,1h,支持毫秒(ms),秒(s),分钟(m),小时(h),天(d),周(w),月(M),季度(q),年(y),当span为正整数时,其单位为毫秒。
        • align=<true|false>: 可选,与bins搭配使用,表示是否将桶值对齐到数值5的倍数,默认值为false。
    • column-split: <field> [<bin-options>] [<field>...] [useother=<BOOL>] [<where-clause>]
      • <field> [bin-option]
        • <field>: 单个列分组字段。
        • <bin-options>: 可选,分桶选项,只对第一个列分组字段可用。
      • <field>...: 多个列分组字段。
      • useother=<BOOL>: 可选,是否需要 OTHER 列,默认为 true。
      • <where-clause>: 用于筛选哪些列需要用于展示, 语法:where <stats-func> <where-comp>
        • <stats-func>: 统计函数.
        • <where-comp>: <wherein-comp> | <wherethresh-comp>
          • <wherein-comp>: (in | notin) (top | bottom)<int>
          • <wherethresh-comp>: ( < | > ) <num>

    用法示例:

    显示每个“主机”和“用户”之间的最大“延迟”。

    ... | chart max(delay) by host, user


    这个写法等价于

    ... | chart max(delay) over host by user


    如果要限制 user 的显示数量,可以使用 limit 参数, 它会选出 top 5 的指标, 其他将归类到 OTHER 列中。

    ... | chart limit=5 max(delay) over host by user


    按时间分组统计:

    ... | chart count() over _time span=1d by user
    ... | chart count() over _time span=1d by date_hour span=12


    多个列字段:

    ... | chart count() over f1 by sourcetype, origin


    where-clase 示例:

    选出和最大的 5 个列:

    ... | chart count() over _time span=1d by f1 where sum in top5
    ... | chart count() over _time span=1d by f1 useother=false where sum in top5


    选出最小值大于 0 的所有列:

    ... | chart count() over _time span=1d by f1 where min > 0
